Storage container
- Resistant CDC painting
- Available with either wooden or steel floor
- Handling with crane or fork lift
- Storage of up to 10 tons possible
- Security and electrical fittings
We can promptly assist you with a temporary or permanent storage and material space solution. Our storage containers are available in different sizes and colours including security fittings. The material containers can be found on construction sites throughout Europe.
Available types and sizes
Dimensions
Short side front
Long side right
Long side left
Short side rear
Length: | Width: | Height: | Weight:* | Cap. (m³) | |||||
outward 1,980 mm | outward 1,970 mm | outward 1,910 mm | 450 kg | 6.66 m³ | |||||
inward 1,800 mm | inward 1,860 mm | inward 1,730 mm |
* depending on layout
You can find further information in the technical description.
Short side front
Long side right
Long side left
Short side rear
Length: | Width: | Height: | Weight:* | Cap. (m³) | |||||
outward 2,438 mm | outward 2,200 mm | outward 2,260 mm | 630 kg | 9.82 m³ | |||||
inward 2,275 mm | inward 2,106 mm | inward 2,050 mm |
* depending on layout
You can find further information in the technical description.
Short side front
Long side right
Long side left
Short side rear
Length: | Width: | Height: | Weight:* | Cap. (m³) | |||||
outward 2,931 mm | outward 2,200 mm | outward 2,260 mm | 690 kg | 11.96 m³ | |||||
inward 2,770 mm | inward 2,106 mm | inward 2,050 mm |
* depending on layout
You can find further information in the technical description.
Short side front
Long side right
Long side left
Short side rear
Length: | Width: | Height: | Weight:* | Cap. (m³) | |||||
outward 2,991 mm | outward 2,438 mm | outward 2,591 mm | 825 kg | 15.76 m³ | |||||
inward 2,831 mm | inward 2,344 mm | inward 2,376 mm |
* depending on layout
You can find further information in the technical description.
Short side front
Long side right
Long side left
Short side rear
Length: | Width: | Height: | Weight:* | Cap. (m³) | |||||
outward 4,550 mm | outward 2,200 mm | outward 2,260 mm | 915 kg | 18.94 m³ | |||||
inward 4,387 mm | inward 2,106 mm | inward 2,050 mm |
* depending on layout
You can find further information in the technical description.
Short side front
Long side right
Long side left
Short side rear
Length: | Width: | Height: | Weight:* | Cap. (m³) | |||||
outward 6,058 mm | outward 2,438 mm | outward 2,591 mm | 1,270 kg | 32.85 m³ | |||||
inward 5,898 mm | inward 2,344 mm | inward 2,376 mm |
* depending on layout
You can find further information in the technical description.
Short side front
Long side right
Long side left
Short side rear
Length: | Width: | Height: | Weight:* | Cap. (m³) | |||||
outward 2,200 mm | outward 1,600 mm | outward 2,445 mm | 450 kg | 6.55 m³ | |||||
inward 2,040 mm | inward 1,500 mm | inward 2,200 mm |
* depending on layout
You can find further information in the technical description.
Description
Our storage container is universally applicable and provide various equipment options and accessories. Thus, you create a customised interior and exterior according to your needs.

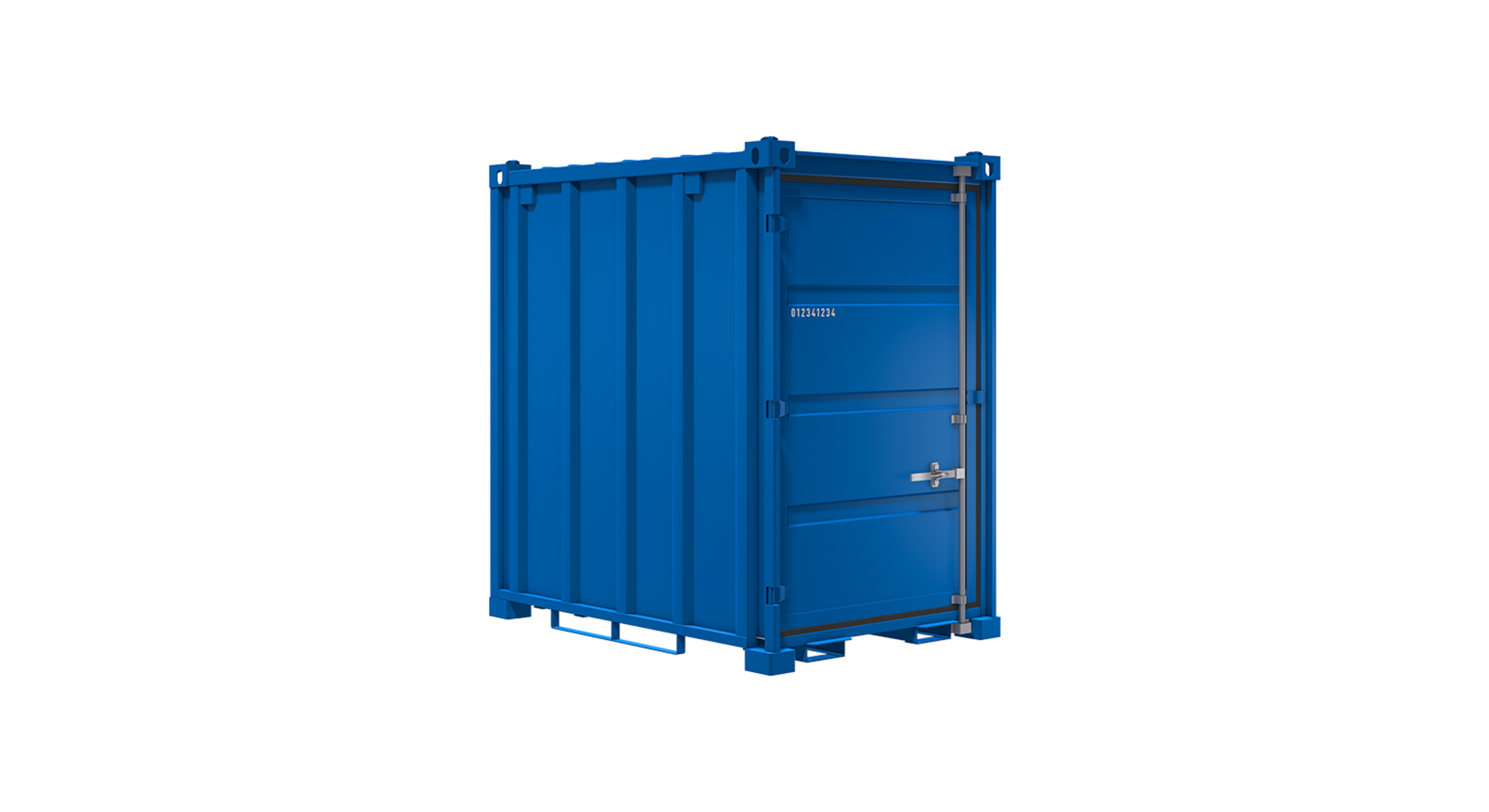

Moverbox
Small but mighty
The alternative when it comes to creating compact storage space: the CONTAINEX Moverbox Our smallest storage container is ideal for self-storage or material storage.
The flexible container in small format.:
The flexible container in small format.:
- Fire and water tight
- Fire protection: fire extinguishes in the container, fire protection strips prevent spreading
- Up to 1,000 kg payload at 4-high stacking
- Handling with forklift, crane or pallet truck
Payloads and load bearing capacities
Please see below the load bearing capacity of our storage containers and material containers according to static calculation and GL-type certificate.
LC 6' | LC 8' | LC 9' | LC 10' | LC 15' | LC 20' | ||||||||
Max. payload (kg) | 2,000 | 3,500 |
8,500 | 10,000 | 5,000 | 10,000 | |||||||
Max. floor load (kg/m²) | 600 | 750 | 1,500 | 1,500 | 550 | 750 | |||||||
Max. lifting weight at 1.5g (kg ) | - | 2,300 | 5,600 | 6,500 | 3,350 | 6,500 |
|||||||
Max. stacking weight (kg) | - | 6,500 | 13,250 | 15,400 | 9,500 | [key=ctxstapelgewicht820] |
|||||||
Characteristic snow load on the floor (kg/m²) | Sk = 2.5 kN/m² (250 kg/m²) Form coefficient µ = 0.8 (s=µ1 * Sk = 2.0 kN/m² (200 kg/m²)) |
Sk = 2.5 kN/m² (250 kg/m²) Form coefficient µ = 0.8 (s=µ1 * Sk = 2.0 kN/m² (200 kg/m²)) |
Sk = 2.5 kN/m² (250 kg/m²) Form coefficient µ = 0.8 (s=µ1 * Sk = 2.0 kN/m² (200 kg/m²)) |
Sk = 2.5 kN/m² (250 kg/m²) Form coefficient µ = 0.8 (s=µ1 * Sk = 2.0 kN/m² (200 kg/m²)) |
Sk = 2.5 kN/m² (250 kg/m²) Form coefficient µ = 0.8 (s=µ1 * Sk = 2.0 kN/m² (200 kg/m²)) |
Sk = 2.5 kN/m² (250 kg/m²) Form coefficient µ = 0.8 (s=µ1 * Sk = 2.0 kN/m² (200 kg/m²)) |
|||||||
Max. point load in the centre of the roof (30x30cm; kg) | 150 | 150 | 150 | 150 | 150 | 150 | |||||||
Stacking | not stackable | max. 3 high | max. 3 high | max. 3 high | max. 3 high | max. 3 high |
Financing and leasing
CONTAINEX cabins can be purchased, rented or leased, depending on the installation time and budget. Let our employees advise you on the best financing option for you, without any obligation, by completing the contact form.
